| REMARKS
|
1.
Flange of parenthesized nominal diameter had better not be used. |
| |
2.
The flange gasket surface is based on "large racing"
specified JIS B2202. If |
| |
|
necessary, customers can
order for other types of facing. |
| |
3.

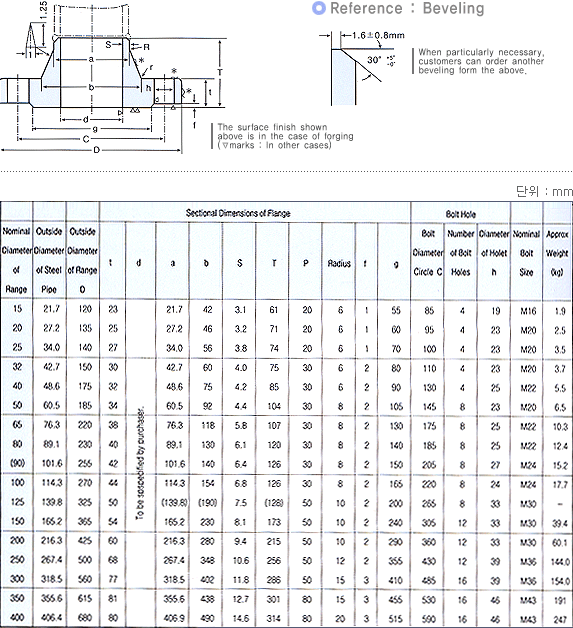

Size d and Size S are examples for sched 40 of JIS G3456, Customers
can also |
| |
|
order for
other sized. |
| |
4. for dimensional
tolerance, refer to JIS B2203. |
| |
5. The dimensime
of ( ) are maker's standard. |
