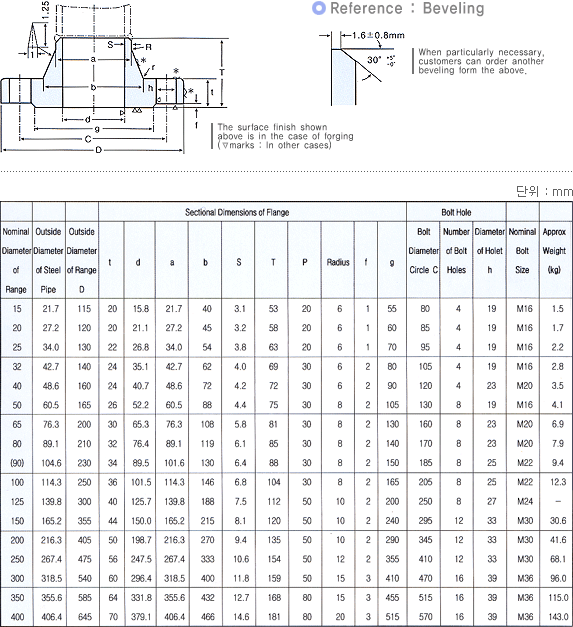

REMARKS 1. Flange of parenthesized nominal diameter had better not be used.


2. The flange gasket surface is based on "large racing" specified JIS B2202. If

    necessary, customers can order for other types of facing.
  3. Size d and Size S are examples for sched 40 of JIS G3456, Customers can also




order for other sized.
  4. for dimensional tolerance, refer to JIS B2203.
  5. T of 125 nominal Diameter is maker's standard.
